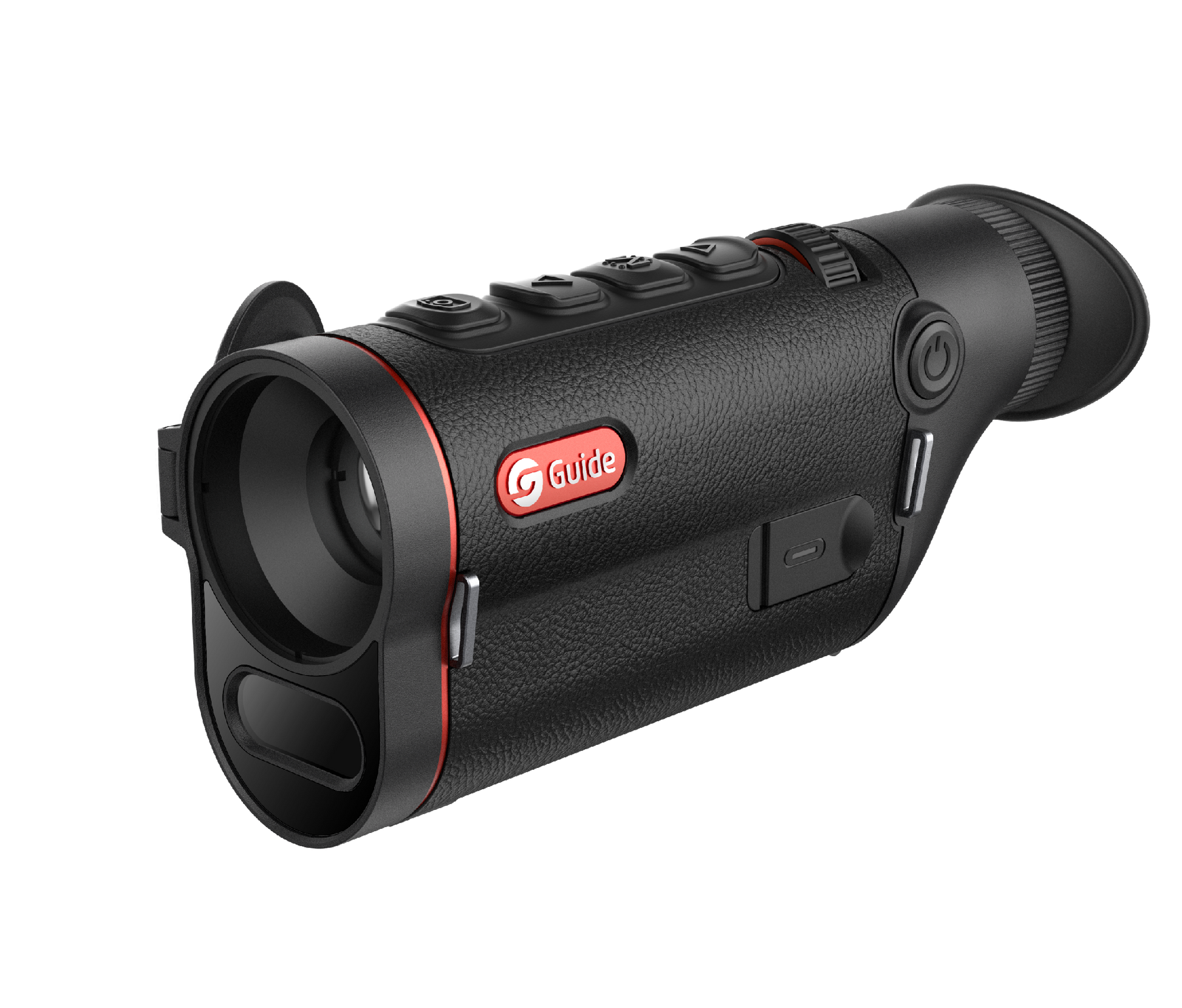

GUIDE TD633L THERMAL MONOCULAR LRF 640X512 <20MK
GUIDE TD633L THERMAL MONOCULAR LRF 640X512 <20MK
Couldn't load pickup availability
The Guide TD633L thermal imaging monocular is engineered for precision and performance, featuring a fully integrated laser rangefinder (LRF) within a compact and lightweight housing. Its central focusing roller enables smooth, one-handed operation, while the ambidextrous, symmetrical design ensures optimal handling comfort for both left- and right-handed users.
Equipped with a high-capacity rechargeable battery, the Guide TD633L delivers up to 12 hours of continuous operation, making it ideal for extended field use. The rugged IP67-rated construction provides superior protection against dust, water, and harsh environmental conditions.
Built-in Wi-Fi connectivity allows seamless pairing with external devices for real-time image transmission, data sharing, and firmware updates, enhancing both functionality and user experience in the field.
Sensor |
||
Type |
Uncooled VOx Infrared Detector, 8 to 14μm |
|
Resolution |
640×512@12μm |
|
NETD |
20mK |
|
Frame rate |
50Hz |
|
Lens |
||
Objective lens |
35mm F1.0 |
|
Field of view |
12.5°×10° |
|
FOV m@100m |
22×17 |
|
Magnification |
1.8x~7.2x |
|
Detection range |
1800m/1950yd |
|
Focus |
Manual |
|
Display |
||
Display type |
0.36'' AMOLED 1280×960 |
|
Color palettes |
White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
|
Eyepiece Eye relief: |
20mm; Diopter: -6 to +6; Zoom: 13.8x |
|
Hardware |
||
Laser rangefinder |
1000m/1090yd |
|
WIFI |
2.4G, 5G |
|
Interface |
USB-C |
|
Others |
Microphone, Bluetooth |
|
System |
||
Recording function |
Photo/Video (Audio recording included) |
|
Memory capacity |
32GB |
|
Power |
||
Battery type |
Single, Replaceable 18650 Battery |
|
Operating time |
10 hours |
|
Environmental |
||
Operating temp. |
-20°C to 50°C / -4°F to +122°F |
|
Encapsulation |
IP67 |
|
Physical |
||
Weight (g/oz) |
376/13.26 |
|
Size (mm/in) |
159×54×74/6.26×2.13×2.91 |
|
Standard |
Device, Hand Strap, Eye Mask, Battery Charger, 18650 Battery ×1, 5V 2A Adapter (US, UK, Australia, and Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card |
|
Optional |
Bluetooth Remote Control, 18650 Battery |
|
